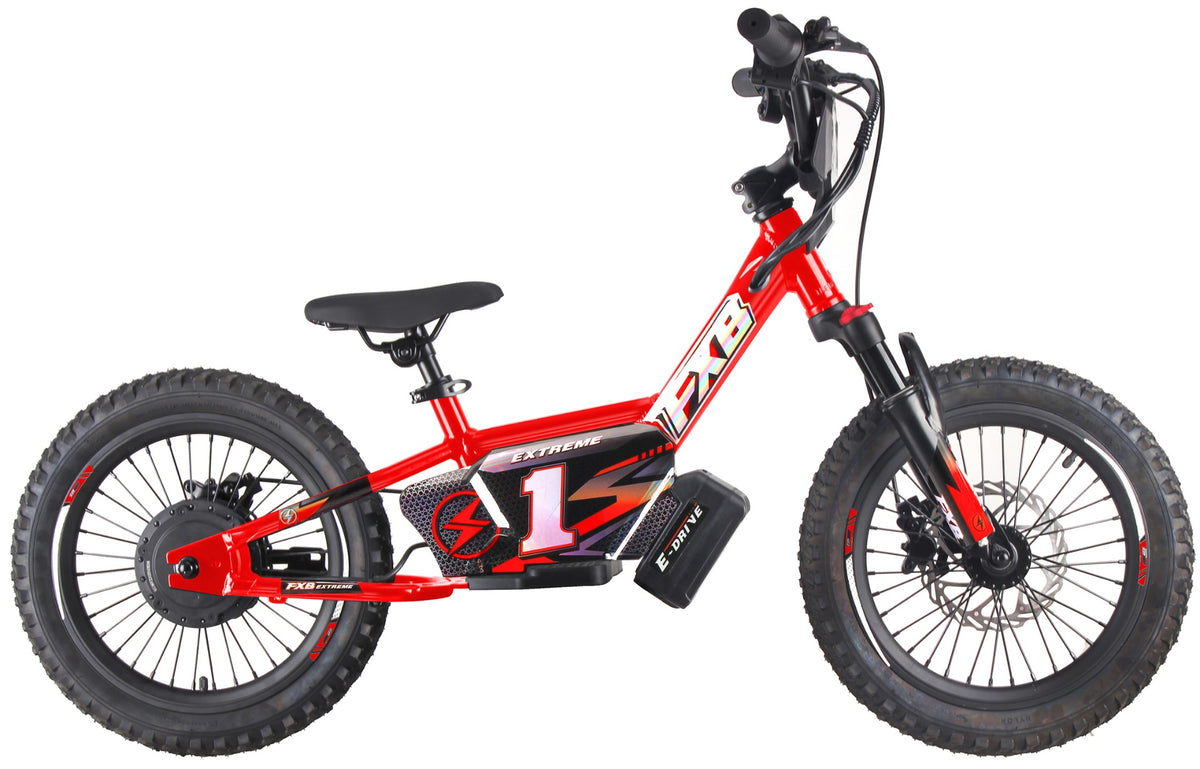

FXB03-16
Find your part.

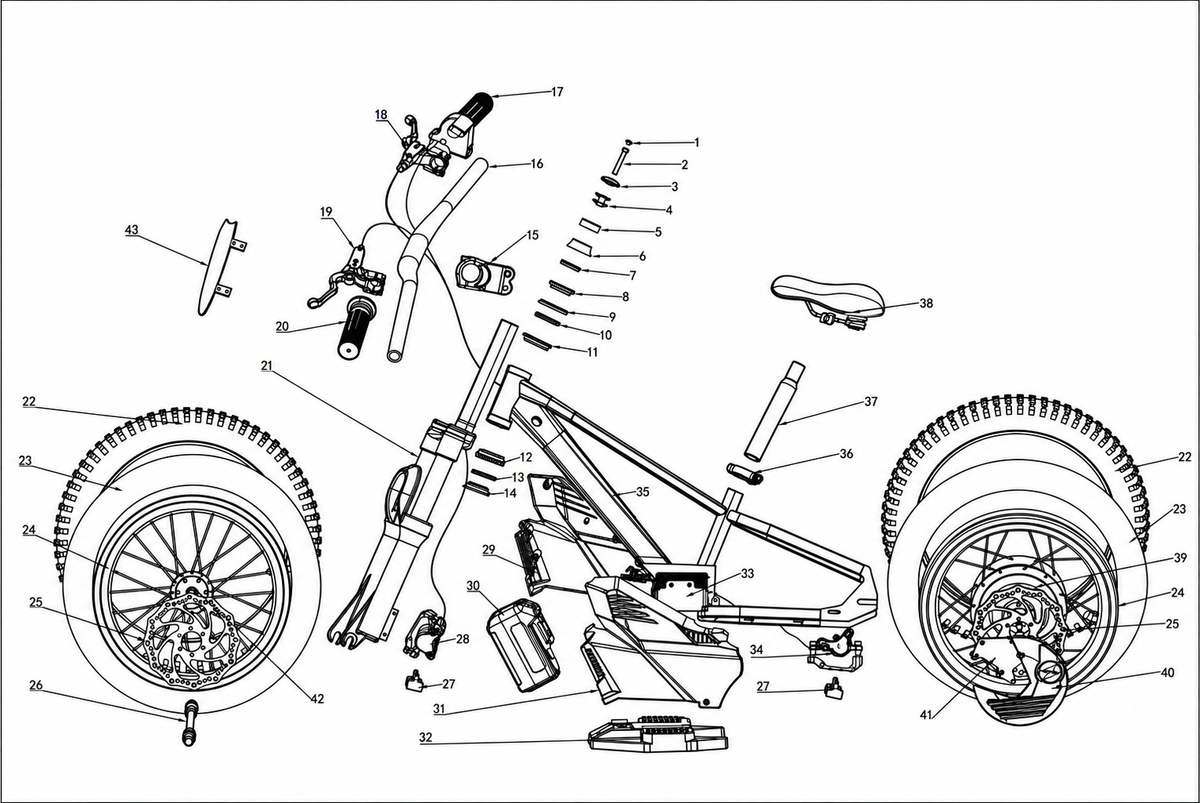

59 partsTap a number on the diagram to jump to that part, with live price and stock.
Tap a number to jump to the part. Pinch or use + / − to zoom; drag to move around.
-
·
36V 10Ah BatteryRIP-PC-20-032-D$369.99In stock -
·
Side StandRIP-PC-16-225-B$19.99In stock -
·
DZ50 Display (Wuxing)FX06-20-24-REB-24-SXE2-410-E$99.99In stock -
28
36V 5.0Ah BatteryRIP-PC-UNI-031-D$269.99In stock -
17
Throttle Assembly (03-16, 01-20, 04-16, 06)FXB-UNI-016-D$129.99In stock -
29
Control ModulePC-16-220-B$129.99In stock -
31
Seat Clamp (Quick Release)RIP-PC-UNI-045-F$9.99In stock -
·
Fast Charger 3A (36V)RIP-PC-UNI-035-D$129.99In stock -
·
Front AxleRIP-PC-16-215-B$19.99Out of stock -
24
Front HubPC-16-228-B$29.99Out of stock -
27
Under-Plate Footrest PlasticPC-16-229-B$29.99Out of stock -
24
Wheel Rim SectionPC-16-227-B$99.99Out of stock -
·
Universal Brake Disc 160mmFXB-ZIP-UNI-040-D$19.99In stock -
38
XOD Brake Pads Sintered AT90 (Upgrade)FXB-SXE2-665-C$49.99Out of stock -
27
CNC Foot Pegs (Upgrade, 01-20 & 03-16)PC-20-058-C$89.99Out of stock -
38
XOD Brake Pads Copper Metal (Upgrade)FXB-SXE2-666-C$59.99Out of stock -
16
Handlebar Pad Cover (01-20 & 03-16)PC-20-057-C$9.99Out of stock -
18
Rear Brake Master Cylinder (01-20, 03-16, 04-16 & SX-E2)FXB-SXE2-611-C$49.99Out of stock -
18
Rear Brake Lever Blade (01-20, 03-16, 04-16 & SX-E2)FXB-SXE2-651-C$14.99Out of stock -
38
Rear Brake Caliper (01-20, 03-16, 04-16 & SX-E2)FXB-SXE2-639-C$49.99Out of stock -
16
Handlebar Pad (01-20 & 03-16)PC-20-056-C$9.99Out of stock -
·
Front Caliper Bracket (01-20, 03-16, 04-16 & SX-E2)FXB-SXE2-607-C$19.99Out of stock -
·
Front Brake Caliper (01-20, 03-16, 04-16 & SX-E2)FXB-SXE2-609-C$29.99Out of stock -
19
$49.99Out of stock -
38
XOD Brake Pads Carbon Ceramic AT88 (Upgrade)FXB-SXE2-664-C$49.99Out of stock -
·
Spoke Adjusting ToolACC-UNI-918-D$9.99Out of stock -
·
Front Brake Pads (01-20, 03-16, 04-16 & SX-E2)FXB-SXE2-652-C$19.99Out of stock -
15
Handlebar Height Adjuster (03-12, 03-16 & 04-16)RIP-PC-12-16-107-B$4.99Out of stock -
38
Rear Brake Pads (01-20, 03-16, 04-16 & SX-E2)FXB-SXE2-653-C$19.99Out of stock -
38
Rear Caliper Bracket (01-20, 03-16, 04-16 & SX-E2)FXB-SXE2-640-C$14.99Out of stock
-
19
Front Brake Lever Blade (01-20, 03-16, 04-16 & SX-E2)FXB-SXE2-650-C$14.99Out of stock
-
·
Bike Stand (Square Foldable)ACC-UNI-917-D$29.99In stock -
·
Rear Fender Guard (03-12, 03-16 & 01-20)ACC-UNI-906-D$19.99In stock -
18,38
Rear Hydraulic Brake SystemPC-16-214-B$169.99Out of stock -
19
Front Hydraulic Brake SystemPC-16-213-B$159.99Out of stock -
·
Sticker KitPC-16-223-B$29.99Out of stock -
40
Rear Wheel with 400W Hub MotorPC-16-222-B$329.99Out of stock -
24
Front Wheel (Spoked Rim)PC-16-206-B$79.99Out of stock -
21
Hydraulic Adjustable Front ForkPC-16-202-B$249.99Out of stock -
28a
Battery TerminalRIP-PC-UNI-033-F$9.99In stock -
·
Rear Disc 140mm (01-20, 03-16, 04-16, 06-20 & SX-E2)RIP-20-PC-16-041-C$24.99Out of stock -
33
Seat AssemblyRIP-PC-12-16-133-B$49.99In stock -
·
Wheel BearingsRIP-PC-UNI-011-F$9.99In stock -
1-13
Neck Bearing Kit (03-12, 03-16 & 04-16)RIP-PC-12-16-110-F$19.99In stock -
·
Cable Protection 1mRIP-PC-UNI-019-D$9.99Out of stock -
33
SeatRIP-PC-12-16-128-B$19.99Out of stock -
·
Brake PadsRIP-PC-12-16-127-F$19.99In stock -
23
TyreRIP-PC-16-204-T$34.99In stock -
16
HandlebarRIP-PC-16-207-B$24.99In stock -
22
TubeRIP-PC-16-203-T$15.99Out of stock -
·
Rear Wheel SpacersRIP-PC-16-218-F$9.99In stock -
·
Number PlateRIP-PC-UNI-037-D$29.99Out of stock -
·
Front Wheel SpacersRIP-PC-16-217-F$9.99In stock -
34
FrameRIP-PC-16-200-B$249.99In stock -
·
Standard Charger 2A (36V)RIP-PC-UNI-034-D$89.99In stock -
·
Tool KitRIP-PC-UNI-052-C$12.99In stock -
26,30
Body PlasticsRIP-PC-12-16-124-B$39.99In stock -
28
36V 2.5Ah BatteryRIP-PC-UNI-123-D$169.99Out of stock -
39
Rear Disc 140mm (Waved)RIP-12-16-PC-12-125-B$24.99In stock
