FXB03-12

Find your part.

39 parts

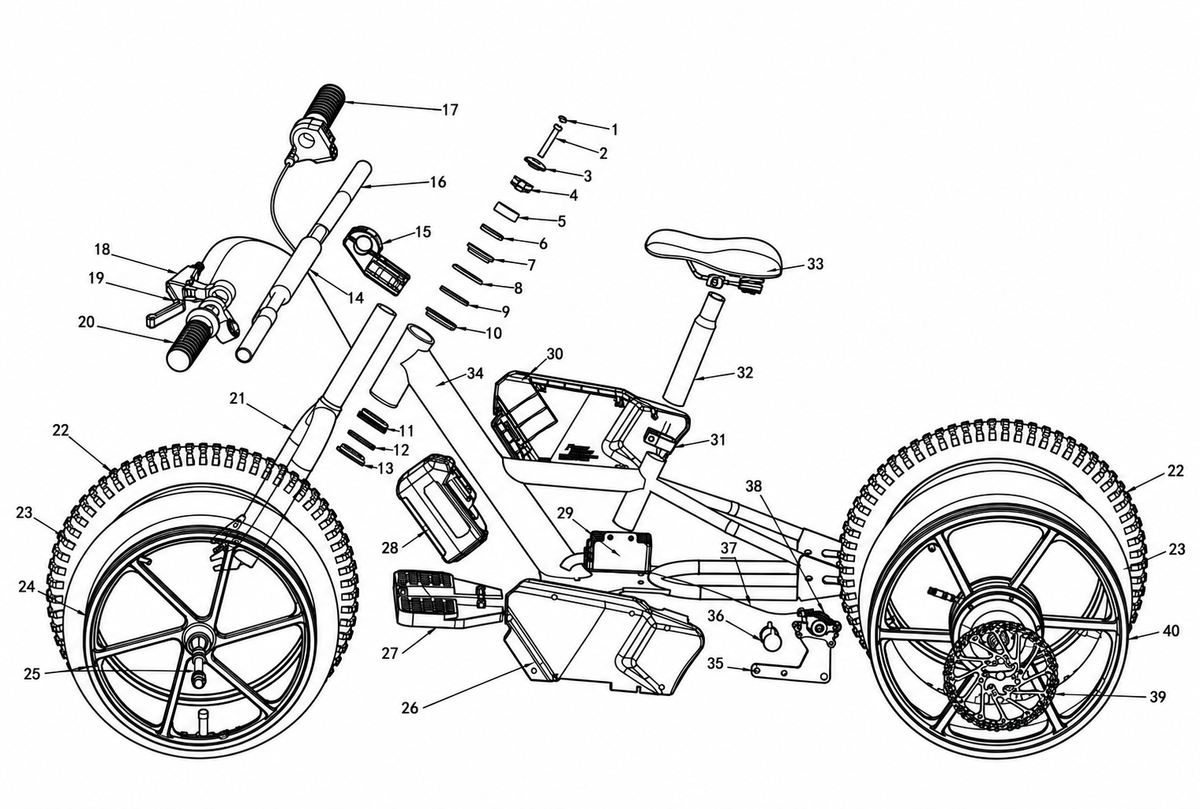

Tap a number on the diagram to jump to that part, with live price and stock.

User Manual
Find your part. — photo

Tap a number to jump to the part. Pinch or use + / − to zoom; drag to move around.

  1. 28 FXB - 36V 5.0Ah Battery
    36V 5.0Ah BatteryRIP-PC-UNI-031-D
    $269.99In stock
  2. 40a FXB03-12 - Training Wheels
    Training WheelsRIP-PC-12-132-B
    $49.99In stock
  3. · FXB - Fast Charger 3A (36V)
    Fast Charger 3A (36V)RIP-PC-UNI-035-D
    $129.99In stock
  4. 40 FXB03-12 - Rear Wheel with Hub Motor
    Rear Wheel with Hub MotorPC-12-122-B
    $299.99In stock
  5. 31 FXB - Seat Clamp (Quick Release)
    Seat Clamp (Quick Release)RIP-PC-UNI-045-F
    $9.99In stock
  6. 17,20 FXB03-12 - Throttle Assembly
    Throttle AssemblyPC-12-109-B
    $64.99In stock
  7. · FXB - Bike Stand (Square Foldable)
    Bike Stand (Square Foldable)ACC-UNI-917-D
    $29.99In stock
  8. · FXB - Rear Fender Guard (03-12, 03-16 & 01-20)
    Rear Fender Guard (03-12, 03-16 & 01-20)ACC-UNI-906-D
    $19.99In stock
  9. 18 FXB03-12 - Brake Lever
    Brake LeverRIP-12-16-114-B
    $19.99In stock
  10. 38 FXB03-12 - Rear Brake Caliper
    Rear Brake CaliperRIP-PC-12-16-126-F
    $29.99Out of stock
  11. 32 FXB03-12 - Seat Post
    Seat PostRIP-PC-12-16-131-B
    $9.99Out of stock
  12. · FXB - Handlebar Height Adjuster (03-12, 03-16 & 04-16)
    Handlebar Height Adjuster (03-12, 03-16 & 04-16)RIP-PC-12-16-107-B
    $4.99Out of stock
  13. · FXB - Cable Protection 1m
    Cable Protection 1mRIP-PC-UNI-019-D
    $9.99Out of stock
  14. 33 FXB03 - Seat
    SeatRIP-PC-12-16-128-B
    $19.99Out of stock
  15. 36 FXB03 - Brake Pads
    Brake PadsRIP-PC-12-16-127-F
    $19.99In stock
  16. 37 FXB03-12 - Rear Brake Cable
    Rear Brake CableRIP-12-16-PC-12-113-B
    $19.99Out of stock
  17. · FXB03 - Number Plate
    Number PlateRIP-PC-UNI-037-D
    $29.99Out of stock
  18. 29 FXB03-12 - Control Module
    Control ModulePC-12-120-B
    $139.99In stock
  19. · FXB - Standard Charger 2A (36V)
    Standard Charger 2A (36V)RIP-PC-UNI-034-D
    $89.99In stock
  20. · FXB - Tool Kit
    Tool KitRIP-PC-UNI-052-C
    $12.99In stock
  21. 26,30 FXB03 - Body Plastics
    Body PlasticsRIP-PC-12-16-124-B
    $39.99In stock
  22. 25 FXB03-12 - Front Axle
    Front AxleRIP-PC-12-115-B
    $19.99In stock
  23. · FXB03-12 - Rear Wheel Spacers
    Rear Wheel SpacersRIP-PC-12-118-F
    $9.99In stock
  24. 24 FXB03-12 - Front Wheel (Star Rim)
    Front Wheel (Star Rim)PC-12-104-B
    $59.99In stock
  25. 21 FXB03-12 - Front Fork
    Front ForkRIP-PC-12-101-B
    $39.99In stock
  26. 34 FXB03-12 - Frame
    FrameRIP-PC-12-100-B
    $179.99In stock
  27. 22 FXB03-12 - Tube
    TubeRIP-PC-12-102-T
    $15.99In stock
  28. 23 FXB03-12 - Tyre
    TyreRIP-PC-12-103-T
    $24.99Out of stock
  29. · FXB03 - Seat Assembly
    Seat AssemblyRIP-PC-12-16-133-B
    $49.99In stock
  30. 16 FXB03-12 - Handlebar
    HandlebarRIP-PC-12-106-B
    $19.99In stock
  31. 39 FXB03-12 - Rear Disc 140mm (Round)
    Rear Disc 140mm (Round)RIP-PC-12-16-136-B
    $15.99In stock
  32. 35 FXB03-12 - Rear Brake Bracket
    Rear Brake BracketRIP-PC-12-16-137-B
    $19.99Out of stock
  33. · FXB - Battery Terminal
    Battery TerminalRIP-PC-UNI-033-F
    $9.99In stock
  34. 15 FXB03-12 - Handlebar Clamp
    Handlebar ClampRIP-PC-12-111-F
    $19.99In stock
  35. 1-13 FXB - Neck Bearing Kit (03-12, 03-16 & 04-16)
    Neck Bearing Kit (03-12, 03-16 & 04-16)RIP-PC-12-16-110-F
    $19.99In stock
  36. · FXB - Wheel Bearings
    Wheel BearingsRIP-PC-UNI-011-F
    $9.99In stock
  37. · FXB03 - 36V 2.5Ah Battery
    36V 2.5Ah BatteryRIP-PC-UNI-123-D
    $169.99Out of stock
  38. · FXB03-12 - Side Stand
    Side StandRIP-PC-12-134-B
    $19.99In stock
  39. 39 FXB03 - Rear Disc 140mm (Waved)
    Rear Disc 140mm (Waved)RIP-12-16-PC-12-125-B
    $24.99In stock
